radiomatic® shock-off / zero-g / inclination switch

Intelligent safety features for specific emergency situations.

radiomatic<sup>®</sup> shock-off / zero-g / inclination switch <p>Intelligent safety features for specific emergency situations.</p>

The safety features can detect different dangerous situations and depending on the desired version, react in one of the following manners:

  • The complete radio system will shut down.
  • Safety-relevant functions will be deactivated.
  • A previously defined function will be activated (e.g. horn).

Your advantages:

  • The unintended output of control commands is prevented.
  • The operator is protected if control over the radio transmitter is lost in specific emergency situations.

How it works:

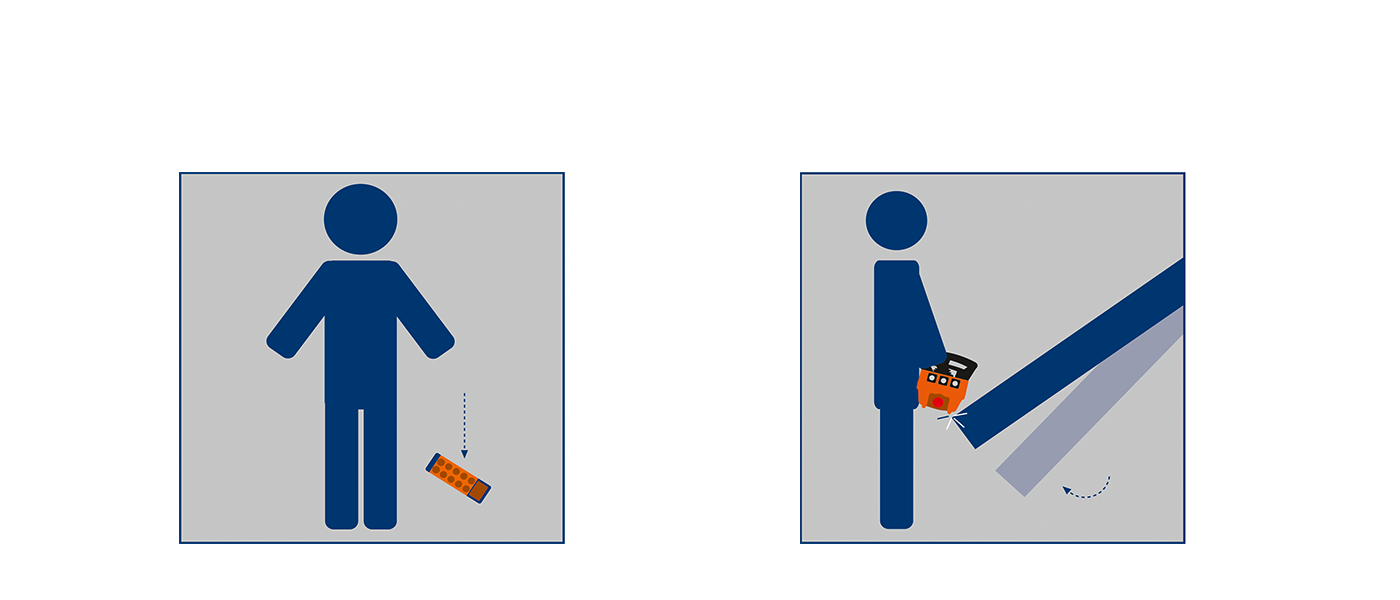

  • radiomatic® shock-off protects the operator when the transmitter receives a hard impact – for example if the transmitter is hit by a hard object and is no longer under control.
  • radiomatic® roll-detect can activate if the transmitter is unintentionally rolled.
  • radiomatic® zero-g can activate when the transmitter slips out of the hand or is thrown.
  • radiomatic® inclination switch can activate if the transmitter exceeds an inclination for approx. 45° for a preset time or lies face-down.
  • The sensitivity of the features can be configured and can be adjusted to suit the specific application.
